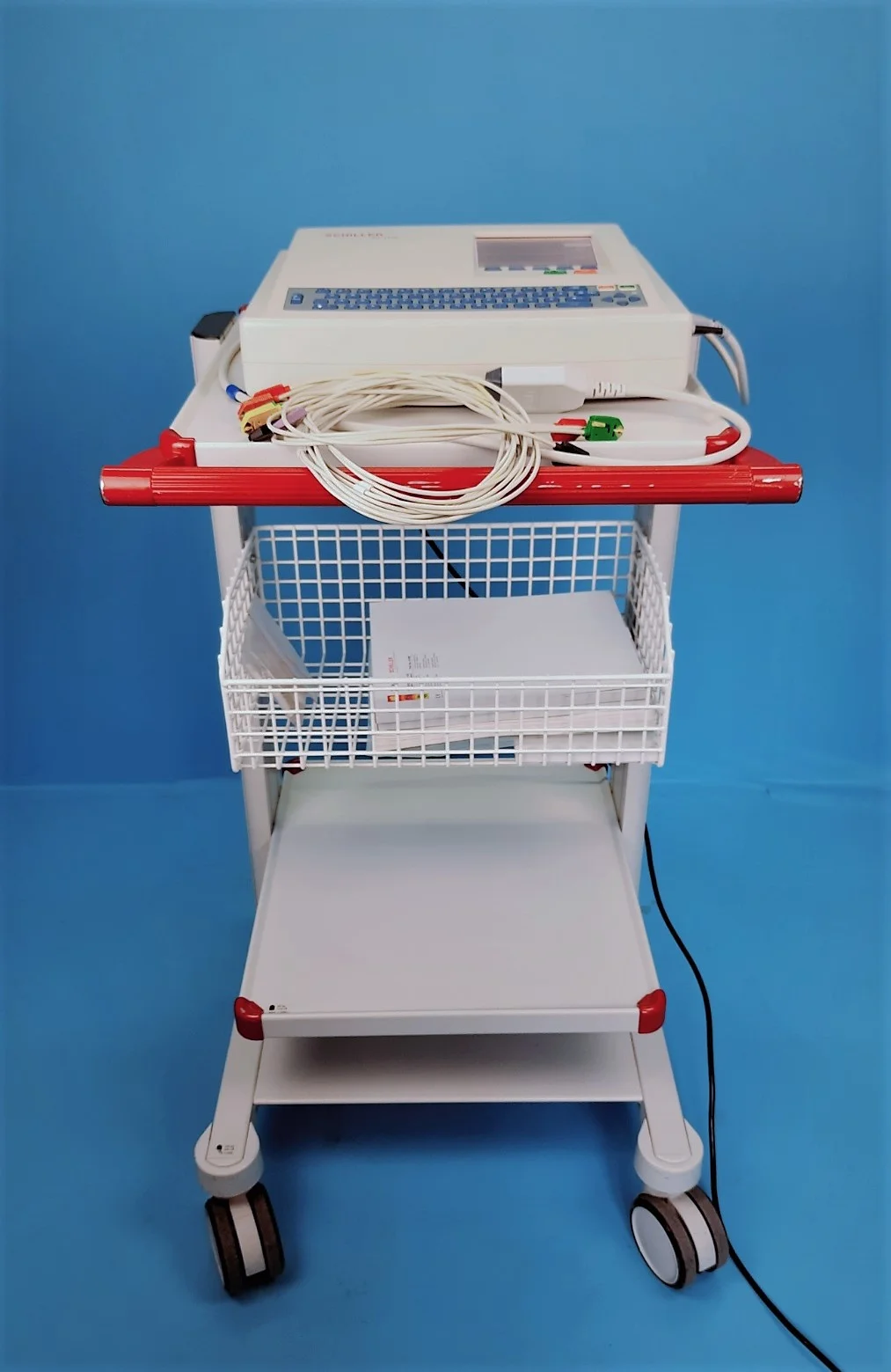

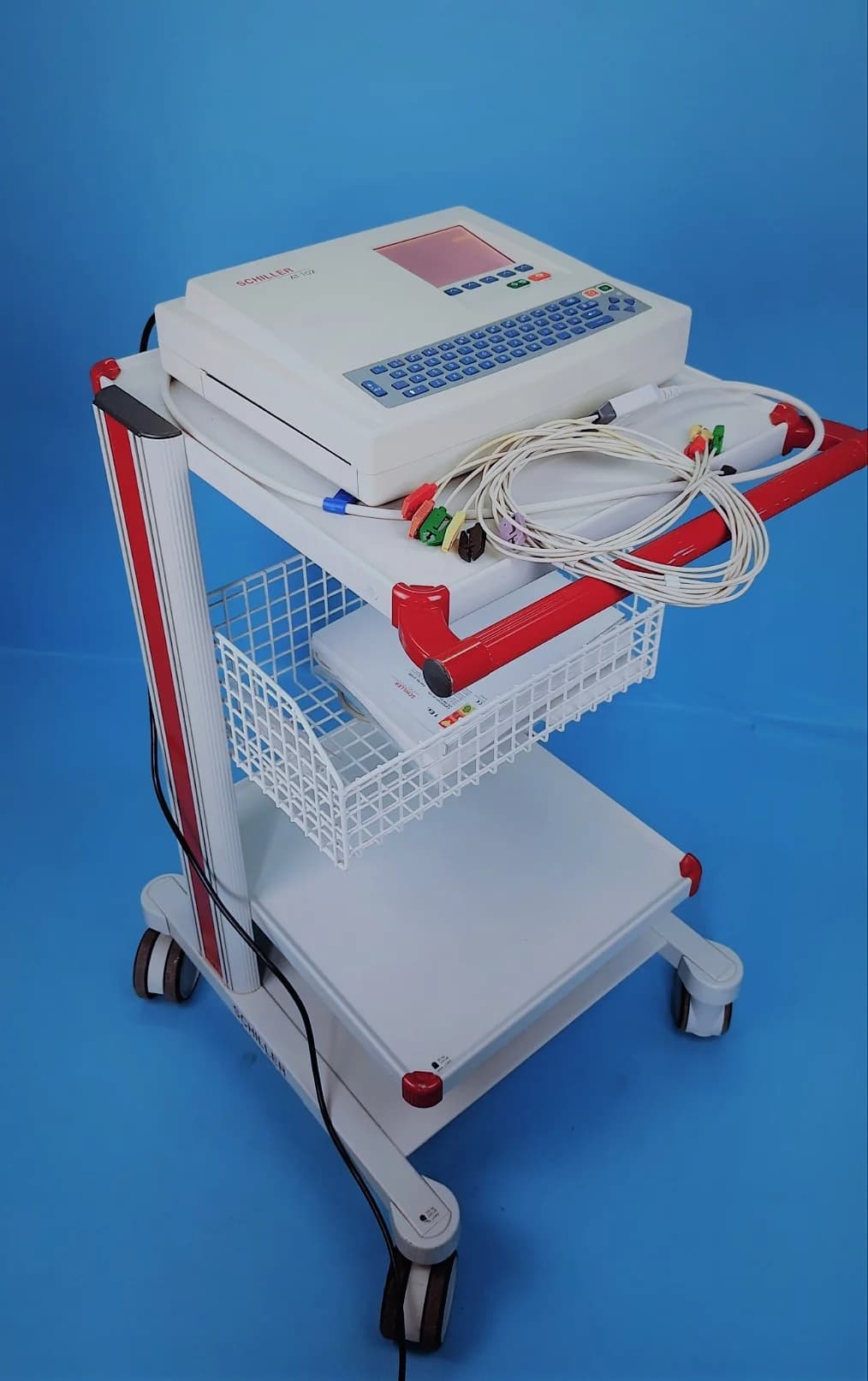

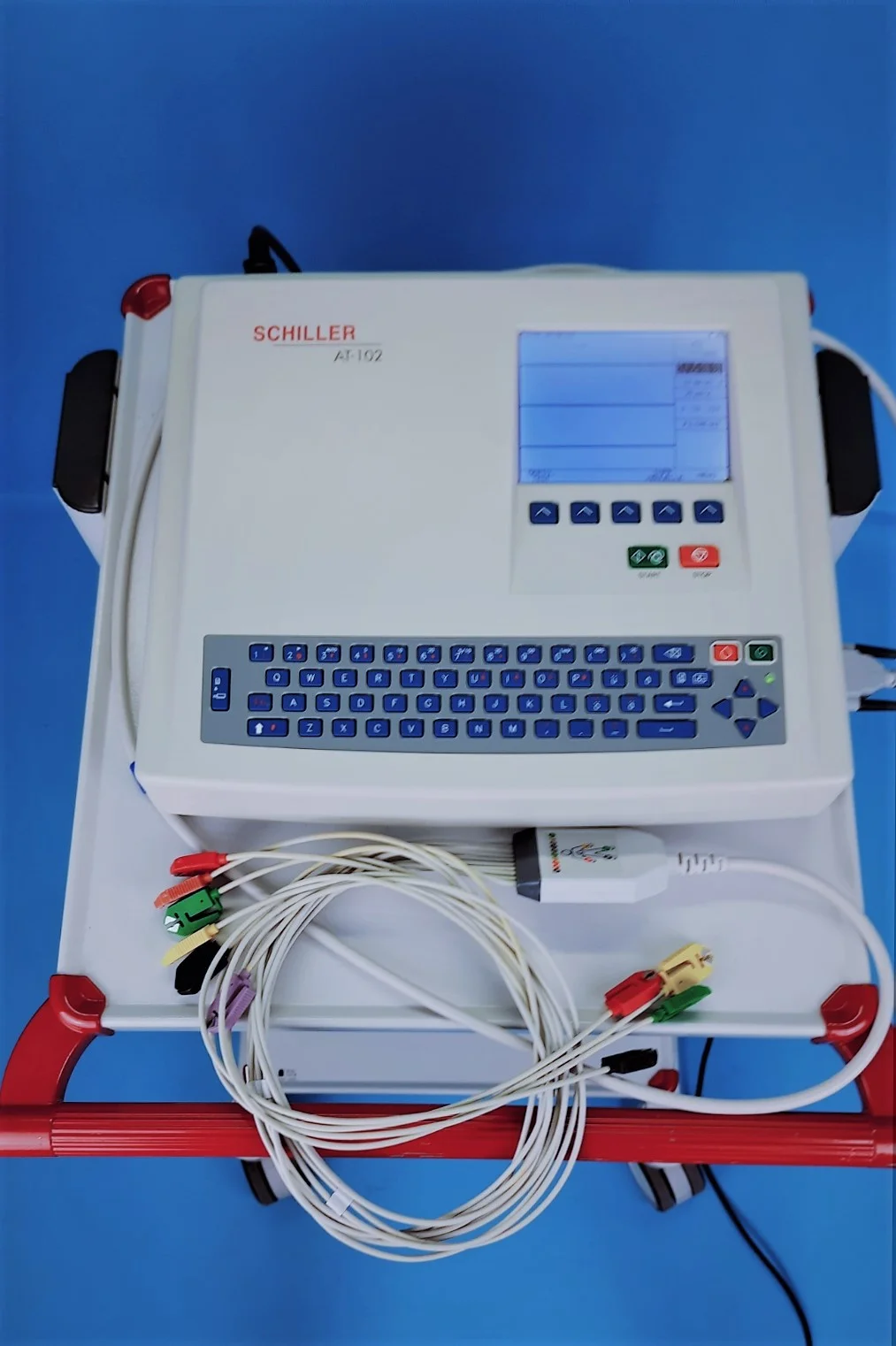

Schiller Cardiovit AT-102 Electrocardiograph ECG/EKG Very Good Condition TESTED - WORKING With ECG Cables and Trolley / Cart FEATURES: Intuitive, easy operation with direct function keys 12-channel resting EKG Interpretation Internal memory for up to 40 records Integral full size thermal quality printer with various user defined print format options Full size keyboard Dedicated soft key interface for easy user friendly operation Optional SCM Wired LAN available Internal SCHILLER Communications module (SCM) is available to transmit resting EKG data in the XML format to a PC or information system Ethernet data transfer to PC for storage of both resting EKG and spirometry recordings in PDF format Optional SpiroScout Spirometer available By connecting a SpiroScout SP sensor, the CARDIOVIT AT-102SCM transforms into a pulmonary function test device that records and measure the flow of air into and out of the patient’s lungs. This accurate ultrasound technology is calibration-free requires no warm up time and maintenance free. Technical Specifications System Dimensions: 400 x 330 x 101 mm, approx. 5 kg On-screen status indicators: Battery status, date, time, power source Control Panel and Keyboard: User-friendly, alphanumeric keyboard, LED indicator and LC display Power Supply Requirements: 110–115 V (nominal), 50/60 Hz; stand-alone operation with built-in rechargeable battery; LED indicator for mains operation, integrated power supply unit Battery Capacity: 4 hours of normal use (approx. 300 automatic EKG printouts) Power Consumption: Max. 30 VA Line Frequency Filter: Distortion-free suppression of superimposed 50 or 60 Hz sinusoidal interferences using adaptive digital filtering (SCHILLER Powerline Filter SPF) Frequency Range of Digital Recording System: 0 Hz – 150 Hz (IEC/AHA) Chart Paper: Thermo-reactive, Z-folded, 210 mm wide (A4, 8.5 x 11 inches) Printing Process: High-resolution thermal head printer, 8 dots/mm (amplitude axis), 40 dots/mm (time axis) @ 25 mm/s Memory: Possibility to save up to 40 Resting EKG or Spirometry measurements Environmental Conditions: Temperature, operating: 10° to 40°C Temperature, storage: -10° to 50°C Relative humidity: 25 to 95% (no condensation) Pressure during operation: 700 to 1060 hPa ECG Patient Input Circuit: Fully floating and isolated, defibrillation-protected (only with original SCHILLER patient cable) Monitor Display: 3- 6 or 12-channel display of the selected leads 25, 50 mm/s 5, 10, 20 mm/mV Filter status (on/off) Insufficient electrode contact Heart Frequency, HF mm/ mV, mm /s Leads: 2 simultaneous leads: Standard / Cabrera Chart Printout Speed: 5/10/25/50 mm/s (manual prin Sensitivities: 5/10/20 mm/mV, either automatically adjusted or manually selected Automatic Lead Programs: 6/12-channel presentations of 12 simultaneously recorded standard lead on one or more A4 (8.5 x 11 inches) pages. Numerous printout formats can be selected Data Record: Patient data (name, age, height, weight, BP), user ID. Listing of all ECG recording conditions (date, time, filter). Recording Track: 6/12-channel presentation, optimal positioning on a width of 200 mm, automatic baseline adjustment Filter: Myogram filter (muscle tremor filter): 25 Hz or 35 Hz, can be switched on/off (SCHILLER Baseline Stabilizer SBS, SCHILLER Smoothing Filter SSF) ECG Amplifier: Simultaneous recording of all 9 active electrode signals (=12 leads). Pacemaker detection: 2 mV/ 0,1 ms Presentation possibilities (printout and screen): Flow/volume graph, Volume/time graph, Table of measured values Real time flow curve Data Record: Patient data (name, age, height, weight), user ID Registration conditions (date, time, date of the last calibration) Flow/volume graph and/or volume/time graph Table of measured values with PREDICTED/ACTUAL/DIFFERENTIAL values Diagnosis guidance
