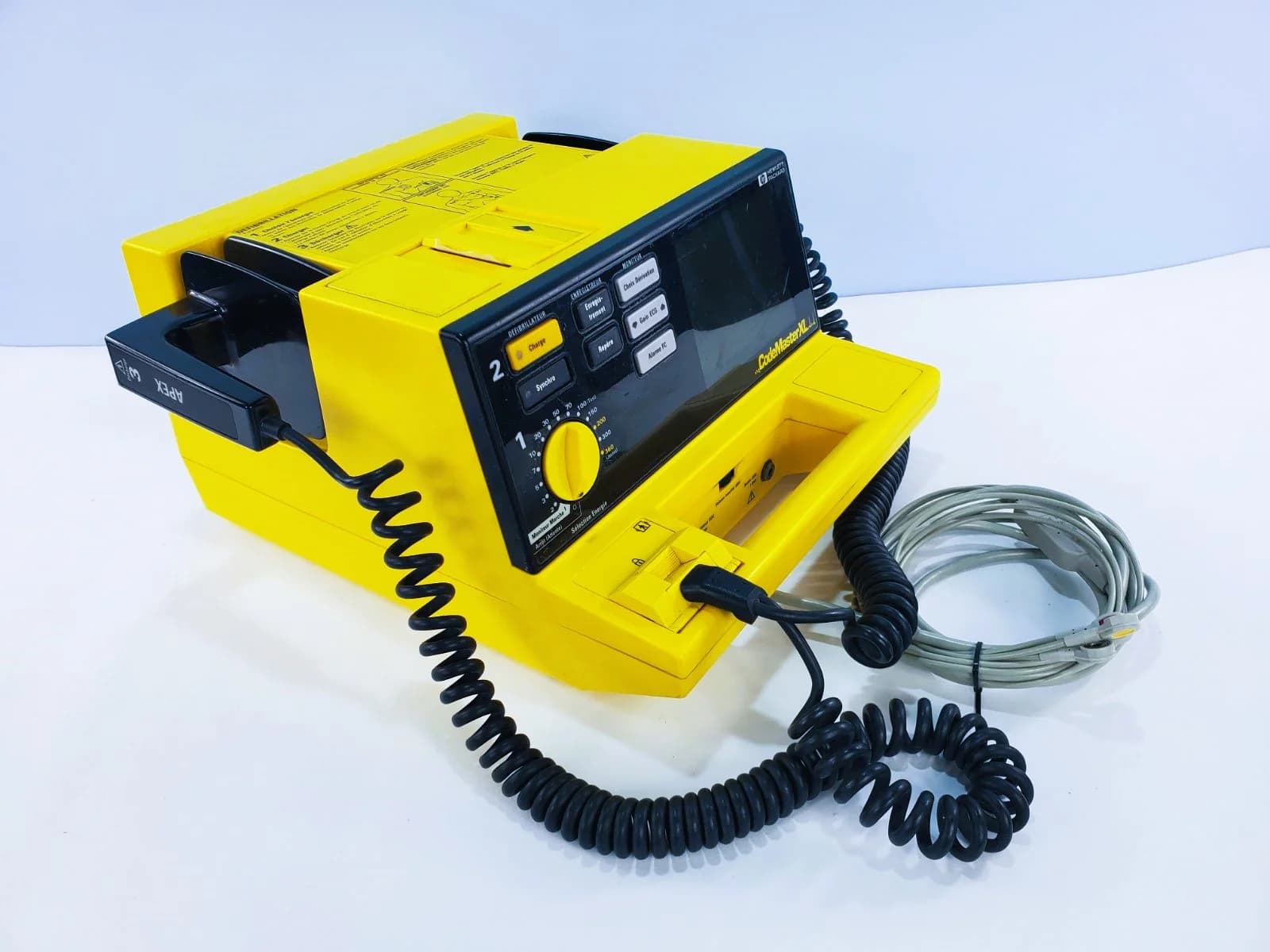

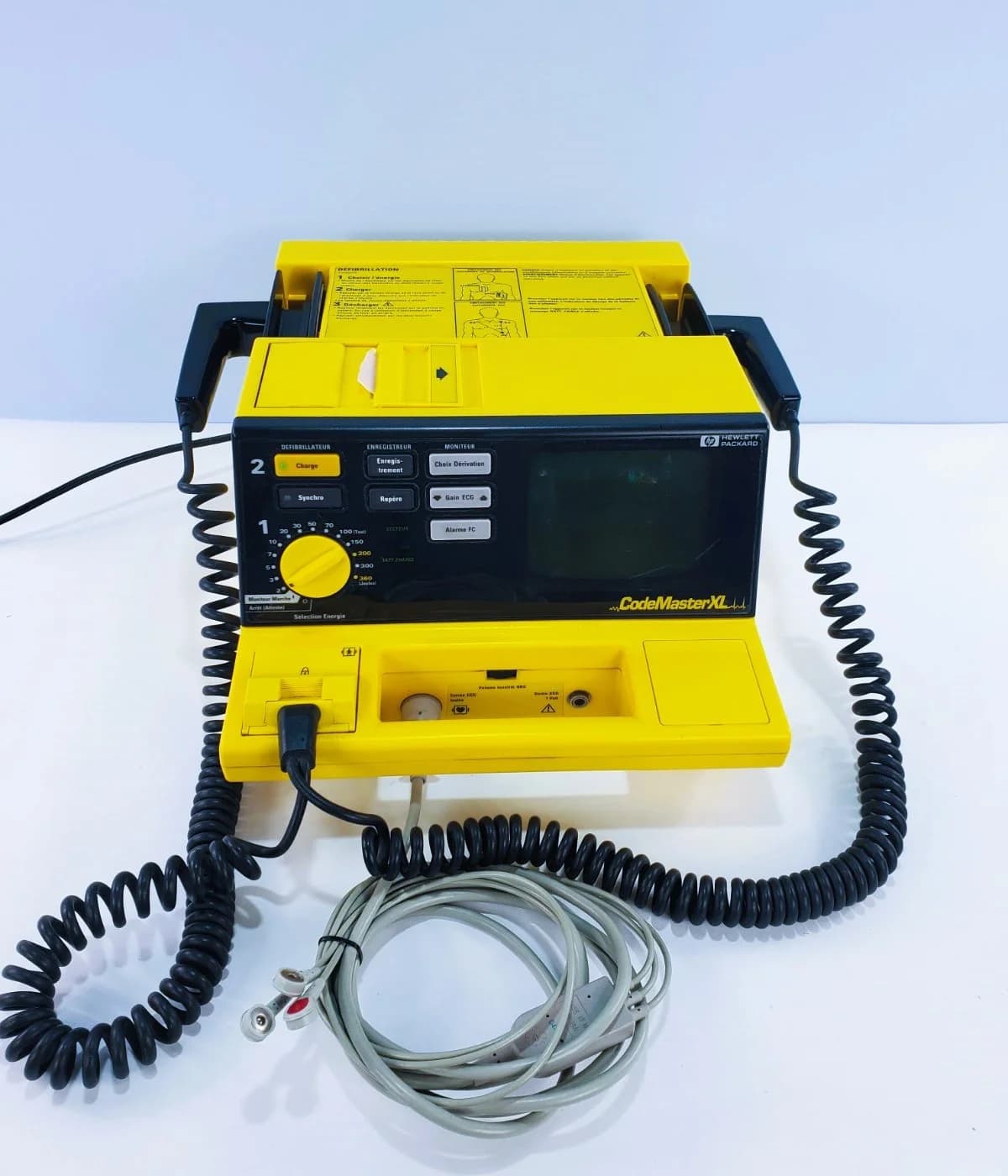

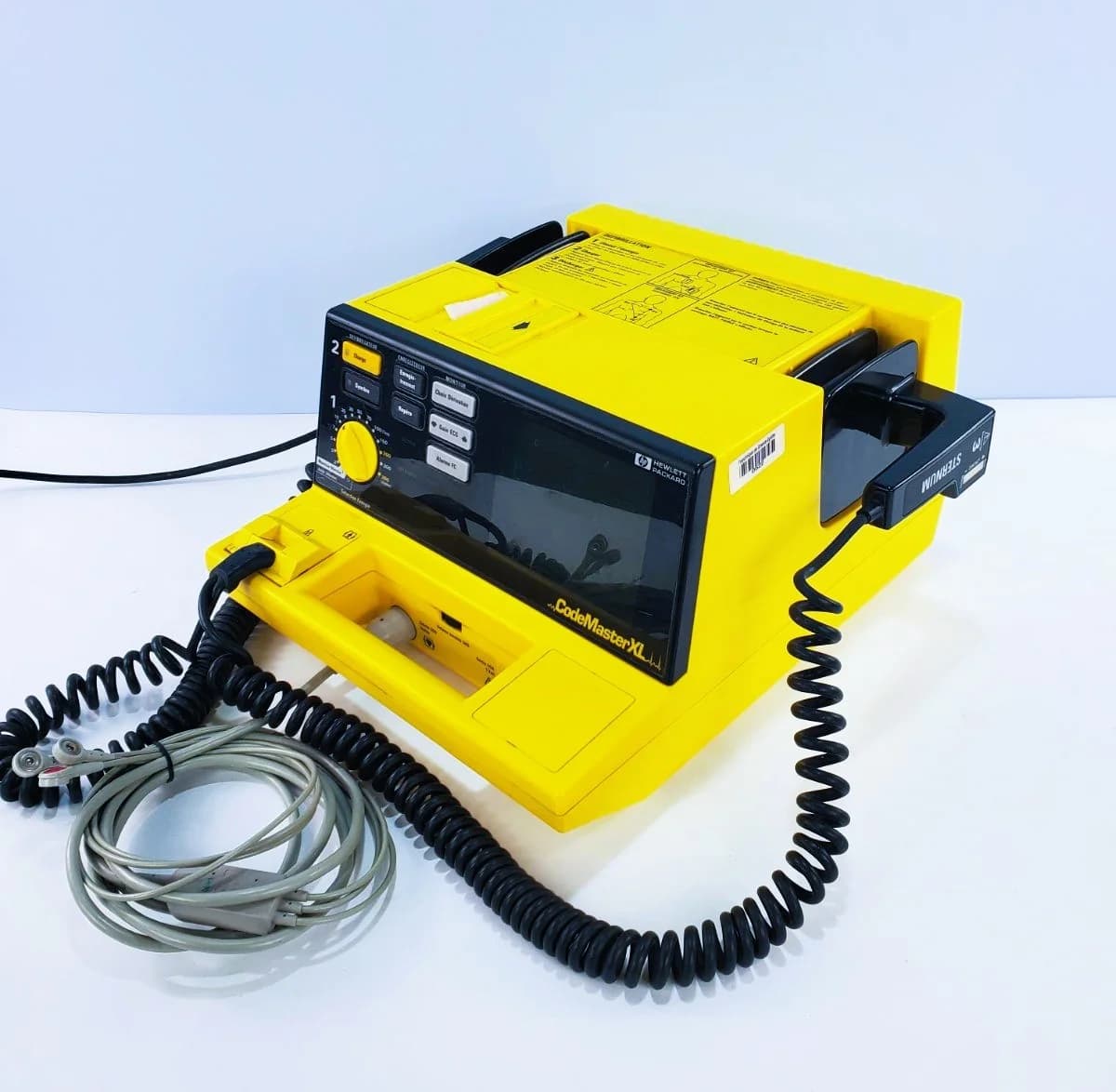

HEWLETT PACKARD CodeMaster XL Defibrillator AED Monitor Does not power up As-is ECG Cables and External Hard Paddles Included FEATURES: The HP Codemaster XL Combines a defibrillator, cardio scope, and annotated recorder to provide a hands-off defibrillation option in this High-performance unit. The HP Codemaster XL offers multi-functional electrodes that allow you to do pacing and defibrillation with the same pads. The Defibrillation system has built-in paddles for pediatric and adult patients. With its easy 1-2-3 operation, the system is easy to use and offers a speedy response in an emergency. The system can charge from 0 to 360 in 5 seconds and store up to 28 events in the memory. The HP Codemaster Xl Plus has a bright 5-inch screen that can tell you the condition of the patient at a glance. Defibrillator with ECG and recorder Provides 1-2-3 operation Built-in pediatric paddles under slide-off adult paddles Preset heart rate alarms High-capacity battery Built-in diagnostics Defibrillator Waveform: Damped sinusoidal (Lown) Output Energy: 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules Charge Control: Push-button on apex paddle and on front panel Charge Time: Less than 5 seconds to 360 joules with battery present. Less than 15 seconds to 360 joules on AC only Armed Indicators: Charge done tone, charge done lamp on apex paddle, and available energy indicated on display Paddle Contact Indicator (optional): 3-color LED bar graph array on STERNUM paddle indicates the quality of defibrillator paddle contact before discharge Paddles: Standard paddles are anterior/anterior, adult, and pediatric. Adult electrodes (83 cm2) slide off to expose pediatric electrodes (21 cm2). The paddle cord is 10 ft (3 m). Full range of internal paddles available Monitor Inputs: ECG may be viewed through paddles or patient cable. Lead I, II, III, or PADDLES selectable. Additional leads (aVR, aVF, aVL, V Leads) and PADS are available. Monitor and recorder indicate selected ECG source Lead Fault: LEADS OFF message and dashed baseline appear on monitor if a lead becomes disconnected Common Mode Rejection: Greater than 100 dB measured as per AAMI standards for cardiac monitors (EC13) Display Size and Type: 5 inch (12.7 cm) diagonal CRT for 4 seconds of ECG data on screen; non-fade, fixed trace. Scrolling trace is selectable Sweep Speed: 25 mm/sec nominal Frequency Response: 0.5 to 40 Hz Heart Rate Display: Digital readout on the monitor from 15 to 300 BPM. Heart Rate Alarms: Three pre-set pairs of high and low heart rate alarm limits from 20 to 280 BPM. (Configurable pairs are optional.) ECG Output: 1V/mV Patient Cable Length: 10 ft (3 m) Thermal Array Recorder Event Summary (optional): Stores and prints 3 seconds pre- and 8 seconds post-critical event data for up to 28 events. Data retained after the unit is turned off Annotates: Time, date, HR, event marker, ECG mode, defibrillator mode, selected energy, actual delivered energy, peak current, and patient impedance Speed: 25 mm/sec. Paper Size: 50 mm by 30 m (100 ft) Recorder Mode: Automatically documents events and ECG during defibrillation episodes. The recorder can be configured to run in either real-time or with a six-second delay Frequency Response: 0.5 to 40 Hz or 0.05 to 150 Hz selectable
